Accessing the RadiusCore API

RadiusCore's API can be accessed via other Visual Basic for Applications (VBA) projects (i.e. .xlsm file) by adding RadiusCore as a reference.

  1. Ensure RadiusCore is installed and enabled on your system.

  2. Open Excel’s Visual Basic for Applications (shortcut ALT+F11).

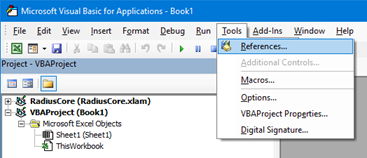

  3. Select ‘Tools’ -> ‘References…’

    3_VBA_Tools

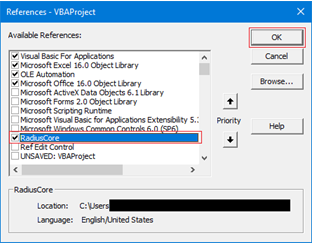

  4. Find RadiusCore in the Available References list. Select it using the checkbox and press OK.

    4_VBA_References

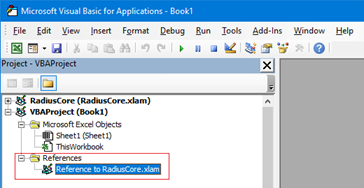

  5. In the Project Explorer, RadiusCore.xlam should be listed as a Reference.

    5_References_Xlam

You can now access RadiusCore via its API, for example:

Sub radius_Sample()
    RadiusCore.Refresh All:=True
End Sub
